A Closer Look
The Jetway board is a mini-ITX form factor, perfect for a PC computer or HTPC (Home Theater PC). It features an AMD Dual-Core E-350 processor with integrated AMD Radeon HD 6310 graphics, enough power to provide an excellent TV or movie experience. An HTPC is designed to be powerful enough to handle audio/video processing yet low power to save energy and produce less heat. With less heat production a small form factor PC can be very quiet or in many cases virtually silent. Who wants to hear the whirl of a CPU fan during the critical plot moment? Not me!
Lets take a closer look at the mini-ITX Fusion motherboard and its specifications:
 |
 |

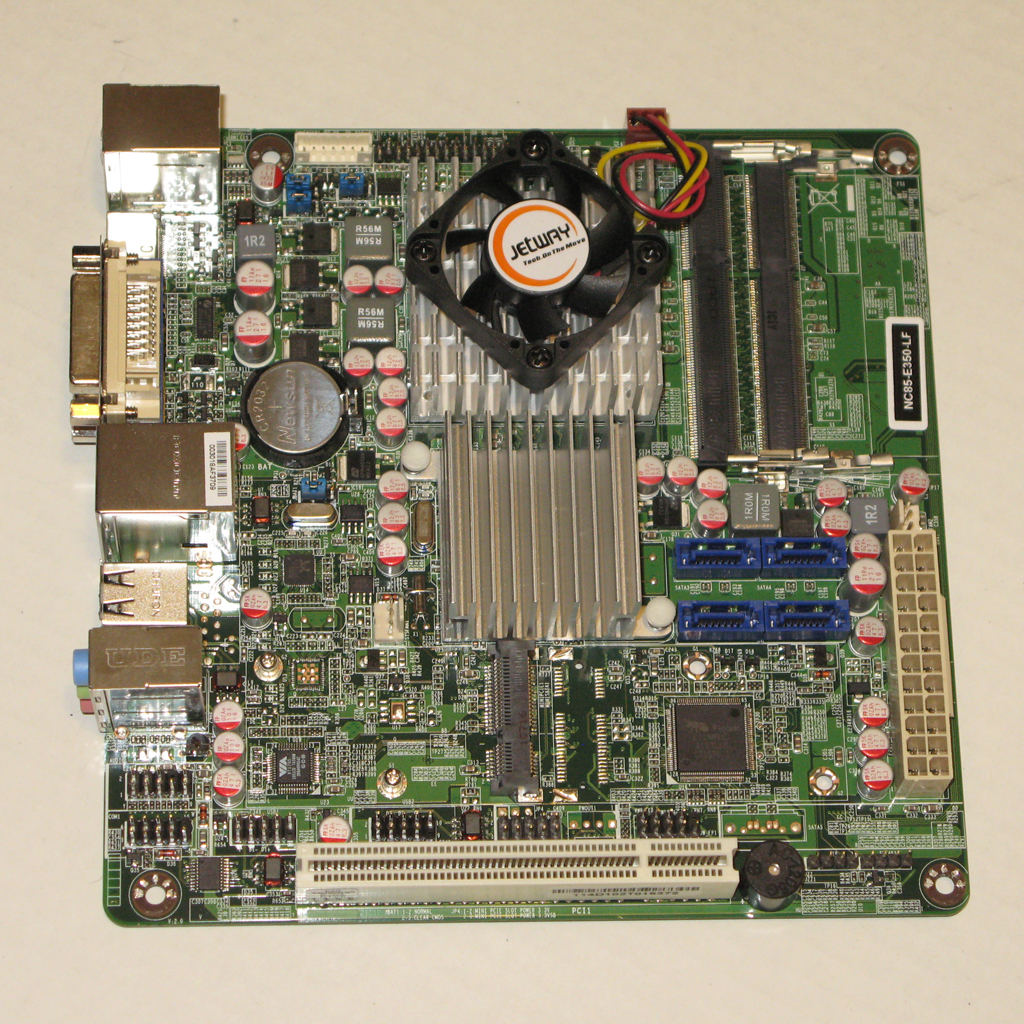

| Jetway NC85-E350-LF Mini-ITX | Board with I/O Panel to the left |
 |
 |

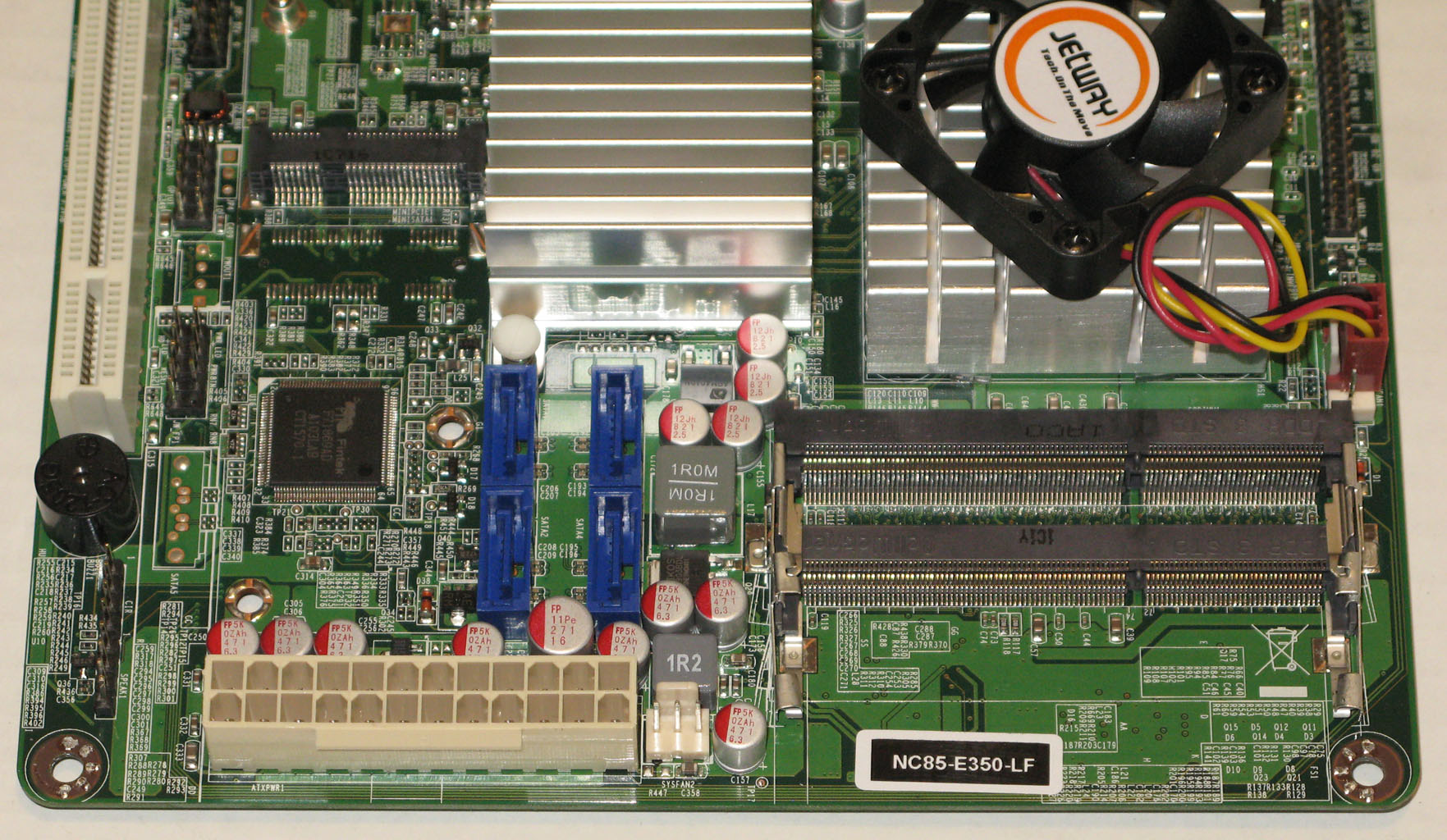

| Amazing how everything fits into such a small space | 24PIN ATX Power Connector |
 |
 |

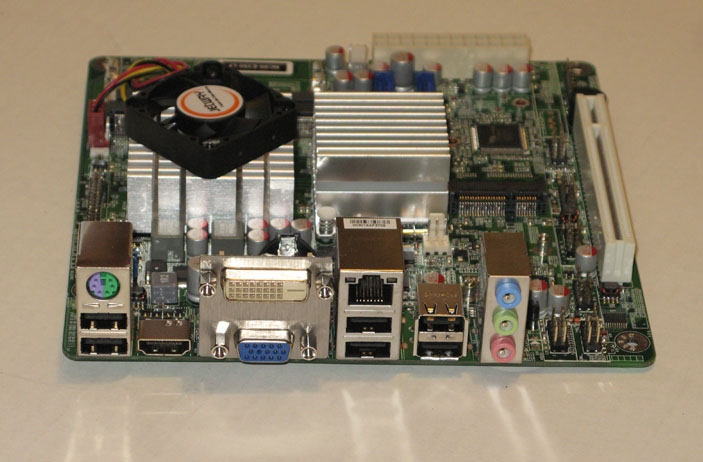

| 1 x PCI slot 1 x Mini PCI-E | PS2, 6xUSB, VGA/DVI, HDMI, Ethernet, Audio |
 |
 |
| Single Channel RAM slots on left | |
 |
|

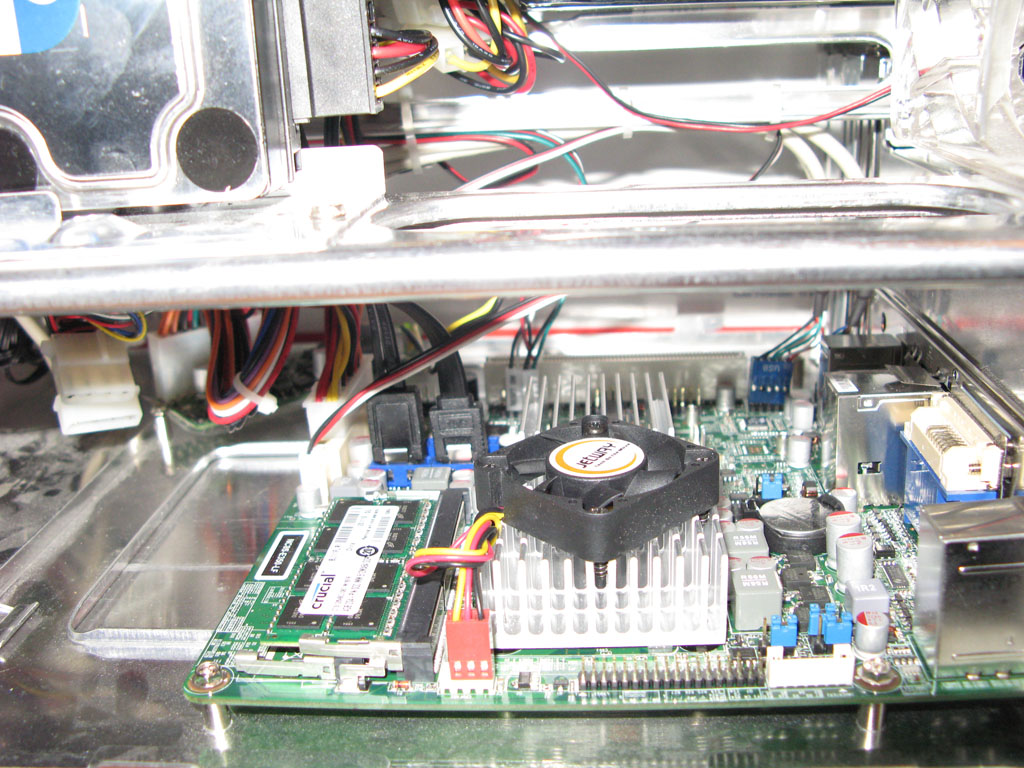

| Installed with WD Carviar Blue HDD and DVD-R/W |
|
Specifications
- AMD Brazos Zacate + Hudson D1 Chipset
- Support AMD Zacate E350 Dual core 1.6GHz APU
- Support DirectX 11 3D Graphics Acceleration
- Support 4 Serial ATAII (3Gb/s) Devices
- Support DDR3 800-1066 Single Channel 64-bit, up to 8GB
- Integrated VIA VT1705 HD Audio CODEC with 6-CH
- Support DVI-D/HDMI Output
- Supports 1 * Realtek RT8111E Gigabit LAN
- Support CPU Smart FAN
- Compliance with ErP standard
- ITX Form Factor(170mm x 170mm)
- 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
- CPU / Chassis Fan connectors;
- 1 * 24-pin ATX Power connector
- 1 * 18 bit Single Channel LVDS header
- 1 * COM Port & 1 * GPIO header
- 1 * CIR header
- 6 * USB 2.0/1.1 ports
- 1 * PS2 KB/MS port
- 1 * RJ-45 port
- 1 * Audio I / O port
- 1 * VGA port
- 1 * DVI-D port
- 1 * HDMI port
