Features:
| Feature: | |
| Ultra-efficiency Cooling System: | 1 x 230mm top fan (exhaust) 1 x 230mm side fan (intake) 2x 140mm front fan (intake), providing exceptional air flow to cool the HDD 1 x 120mm rear fan (exhaust) |
| Bottom-mounted Power Supply: | Power supply is bottom-mounted, can be installed facing either up or down. Pre-drilled holes located at bottom, allowing efficient air flow when power supply is installed facing downward |
| Optimized Cable Management: | Cable is organized behind the pre-drilled motherboard tray,? allowing better cable routing and internal air flow |
| Easy Assembling: | Thumb screw design for easy assembling of optical drive and HDD; thumb screw design also for the side panel |
| Maximum Compatibility: | Compatible with ATX, Micro ATX and all kinds of Nvidia, ATI long graphic card, and most water cooling systems Server-like HDD cage can accommodate up to 8 HDD, equipped with? 2 x 140mm front fans for overheat prevention |
| USB & Audio Ports Located on Top: | USB & eSATA & audio ports located on the top panel, allowing easy access |
Specifications:
| Specifications: | |
| Model Name: | Solano 1000 |
| Model Number: | CSAZ-1000 |
| Type: | ATX Full Tower |
| Color: | Black/Black (internal chassis) |
| Material: | Japanese SECC Steel/Metal mesh in front |
| With Side Panel Window: | Yes |
| With Power Supply: | No |
| Motherboard Compatibility: | ATX, Micro ATX |
| Expansion | |
| External 5.25″ Drive Bay: | 10 |
| External 3.5″ Drive Bay: | 1 |
| Internal 3.5″ Drive Bay: | 8 |
| Expansion: | 7 |
| Front Ports | |
| Front Ports: | 2 x USB, e-SATA, Audio, Mic |
| Cooling System | |
| 230mm Fan: | 1 x 230mm blue LED silent fan (24DBA) on top 1 x 230mm blue LED silent fan (24DBA) on the side |
| 140mm Fan: | 2x140mm blue LED silent fan (19DBA) in front |
| 120mm Fan: | 1x120mm fan in rear |
| Physical Spec | |
| Dimensions (H x W x D): | 21.5″ (545mm) x 8.1″ (213mm) x 19.7″ (500mm) |
Packaging:

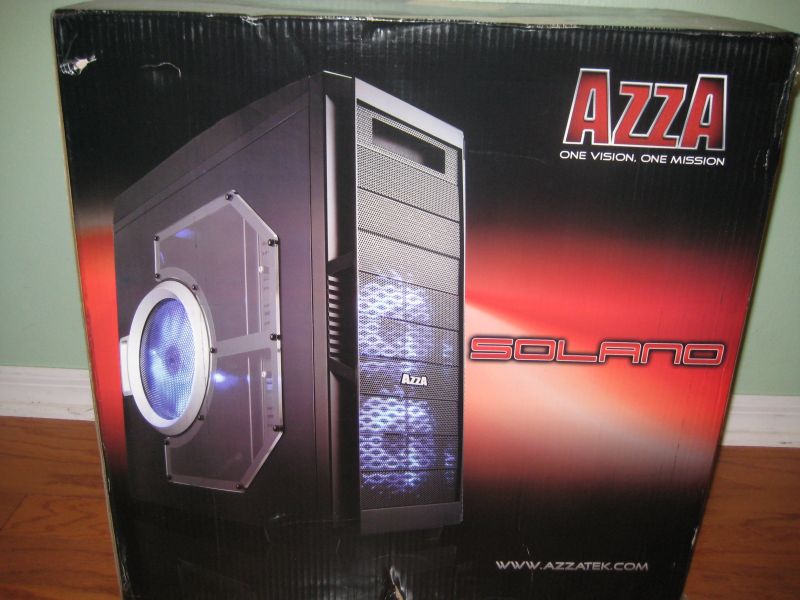

Box

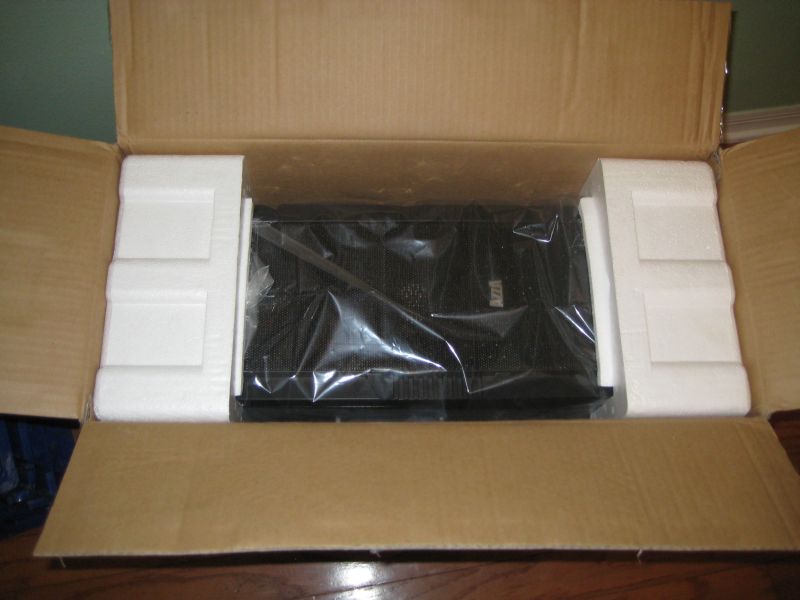

Opened
As you can see the Solano 1000 comes in a well protected package which will prevent scratches and dents during delivery. An internal plastic bag to protect the case from additional scratches. The package contents are as follows:
- Screw for FDD & Card Reader x4
- Screw for Motherboard and Hard Disk x37
- Thumb Screw( for FDD Bracket x8
- Thumb Screw for CD-ROM and DVD-ROM(in Black) x12
- Screw Nut for Motherboard x5
- Speaker x1
- Cable Tie x2
- T-shape cable tie x3
- FDD Bracket x1
- 5.25″ to 3.5″ drive bay x1
Unfortunately the 5.25″ to 3.5″ was not included in our case. We are not sure if this is standard or if this was simply omitted from our package but the fact stands as there was no such piece included in our box. In either case be aware that if you’re still kicking it ’90s style and you want to run that floppy disk drive it is possible you might have little bit of design issue. As you can see above you will have no shortage of screws. We do, however, wish that they would include a few more small cable ties to assist with cable management.
